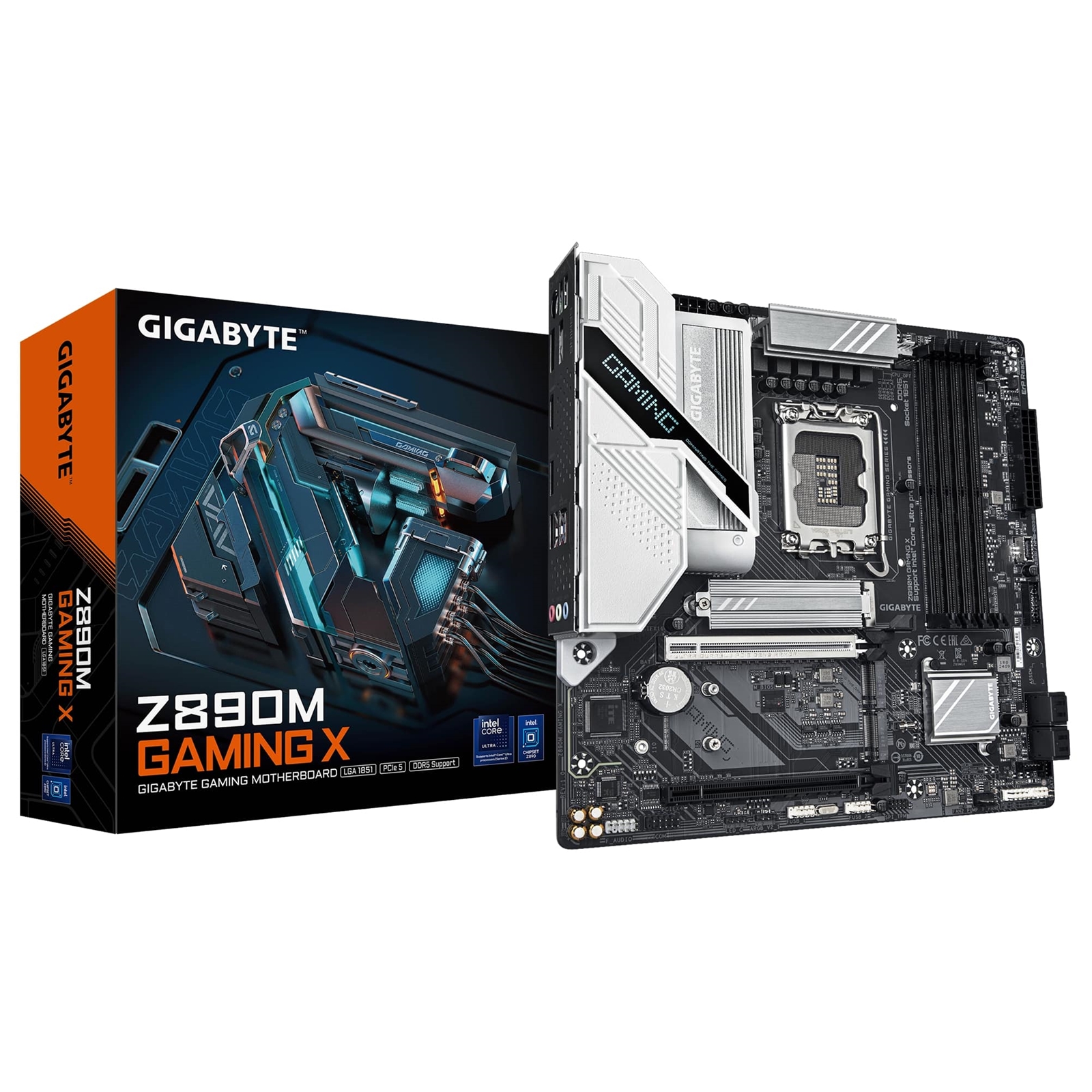

Gigabyte Z890M GAMING X Intel 1851 Socket Motherboard

Description

Z890M GAMING X

Key Features

Supports Intel Core Ultra processors (Series 2)

Digital 8+1+2 phases VRM solution

D5 Bionic Corsa: for Infinite Memory Performance

AI Perfdrive: Provides optimal and customized BIOS preset profile for users

Premium Compatibility: 4 x DDR5 with XMP Memory Module Support

PCIe EZ-Latch: PCIe slots with Quick Release & Screwless Design

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard

Fast Networking: 2.5GbE LAN

Extended Connectivity: HDMI, DisplayPort

Infinite Memory Performance

Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play GAMING Series, steady power keeps your gaming smooth.

Comprehensive Thermal

GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable

Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specification

CPU

LGA1851 socket: Support for Intel Core Ultra Processors

L3 cache varies with CPU

Chipset

Intel Z890 Express Chipset

Memory

Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support CUDIMM memory module

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz

Support for up to triple-display at the same time

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x HDMI port (Note)

2 x DisplayPorts (Note)

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Product Codes:

Manufacter Part Number: Z890M GAMING X

EAN: 4719331865160
