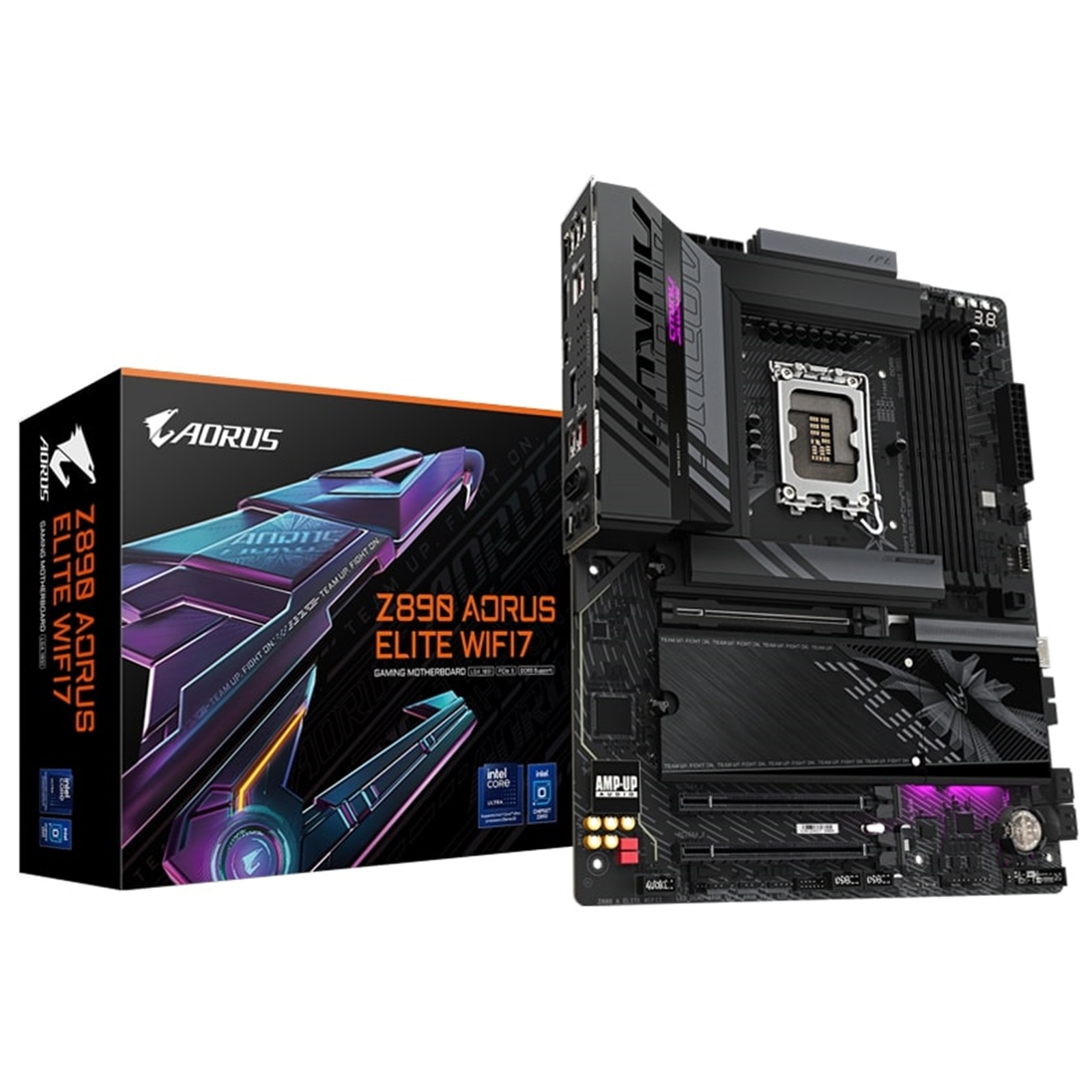

Gigabyte Z890 AORUS ELITE WIFI7 Intel 1851 Socket Motherboard

Description

Key Features

Supports Intel® Core™ Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AORUS AI SNATCH : Auto-Overclocking Software by AI models

AI Perfdrive : Provides optimal and customized BIOS preset profile for users

Premium Compatibility : 4*DDR5 with XMP Memory Module Support

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click : M.2 heatsinks with screwless design

Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L

Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt, DisplayPort

High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors

Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Infinite Memory Performance

D5 Bionic Corsa Technology.

Steady Power

Keeps your computing smooth.

D5 Bionic Corsa

Advanced AI-enhanced overclocking tech. for DDR5.

Comprehensive Thermal

Keep your system cool and efficient.

Hassle-free Assembly

Ultimate DIY-Friendly experience.

Tailored Computing

More superb, user-friendly, customized BIOS & software.

Born from Ultra Durable™

Built for longevity and reliability.

Memory

Infinite Memory Performance

AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

*Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

D5 Bionic Corsa

AI Overclockin For peak performance

AORUS AI Snatch

Auto-Overclocking Software by AI model

*Coming soon

AI SNATCH Engine

Advanced AI Overclocking Model

AI Design

For MB signal enhancement

AI-Driven PCB Design

Redefining PCB Design with AI

HyperTune BIOS

AI-Driven Advanced BIOS Optimization Technology

Sturdy VRM Design

Steady Power

Better Play AORUS Series, steady power keeps your gaming smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

16 VCORE Phases SPS 80A

Unlock the full power of your multi-core CPU for unmatched performance.

*8+8 phases parallel power design

VCCGT Phase DrMOS 40A

Optimized for integrated GPU performance and memory management within the CPU.

VCCSA Phases SPS 80A

Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

Cooling

Comprehensive Thermal

AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

Level Up Epic VRM heatsinks for non-stop gaming

4X Massive cooling surface

Exceptional heat dissipation

Superior Heatpipe

5 W/mK thermal pad

M.2 Thermal Guard

with M.2 Thermal Guard Backplate

* Test results are for reference only and may vary in different circumstances.

6x optimized heat dissipation

M.2 Thermal Guard Ext.

3x M.2 slots coverage

Small Vents, Big Cooling Power

* Test results are for reference only and may vary in different circumstances.

Up To 7°C lower temperature

RL-ILM design

Reduce up to 4°C

Smart Fan 6

Cool. Quiet. Customized.

Easy & Friendly

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

EZ-Latch Designs

User-friendly designs simplifying the assembly process.

M.2 EZ-Latch Click

screwless installation for M.2 heatsink

M.2 EZ-Latch Click

M.2 EZ-Latch Plus

PCIe EZ-Latch Plus

Sensor Panel Link

Fast-Access Controls

Handy, Revert, Refresh

EZ Debug Zone Q-FLASH Auto Scan

More Quick Control Elements

Connectivity

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

All-round Connectivity

THUNDERBOLT™ 4

Wi-Fi 7

Directional Ultra-high Gain Antenna

2.5GbE LAN

Conquer gaming realms with unparalleled audio

True High-Fidelity Music

Audiophile Grade Capacitors

Ultra Durable™

Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

PCIe UD Slot X

The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

10X load-bearing capacity

integrated, single-piece design anchored to a exclusive backplate

Inner Lining Rubber Strip

Safeguards your graphics card’s PCB against potential damage

Zinc Alloy

Provides effective EMI shielding for high-frequency signals

UD Power Connector

Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

Solid Pins

Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Ultra Durable PCIe Armor

Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.

Tailored Computing

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

UC BIOS

Restructured with user-centered and intuitive performance adjustment mechanisms.

Multi-Theme

Multiple BIOS skin with newly exclusive grayscale mode

AIO Fan Control

Adjust AIO fan speed in the BIOS

AI PerfDrive

GIGABYTE Control Center

A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion

Personalize the RGB illumination on your motherboard and connected peripherals.

HWiNFO

Exclusive Partnership

Power Monitor

AORUS & HWiNFO Co-branded OSD

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors

L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.

Chipset

Intel® Z890 Express Chipset

Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support CUDIMM memory module

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

– 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs

When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).

When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.)

* Support for DisplayPort 2.1 version and HDCP 2.3 – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

* Support for HDMI 1.4 version – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

* Support for DisplayPort 2.1 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

Support for up to triple-display at the same time

Audio

Realtek® ALC1220 CODEC

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.4

– Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– BLUETOOTH 5.4

– Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations.

Expansion Slots

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface

CPU:

– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:

– 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel

*Support up to 40Gbps with Thunderbolt devices

*Support up to 20Gbps with USB4 devices

*Support up to 10Gbps with USB 3.2 devices

Chipset:

– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

– 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

– 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x R

Product Codes:

Manufacter Part Number: Z890 AORUS ELITE WIFI7

EAN: 4719331864507
