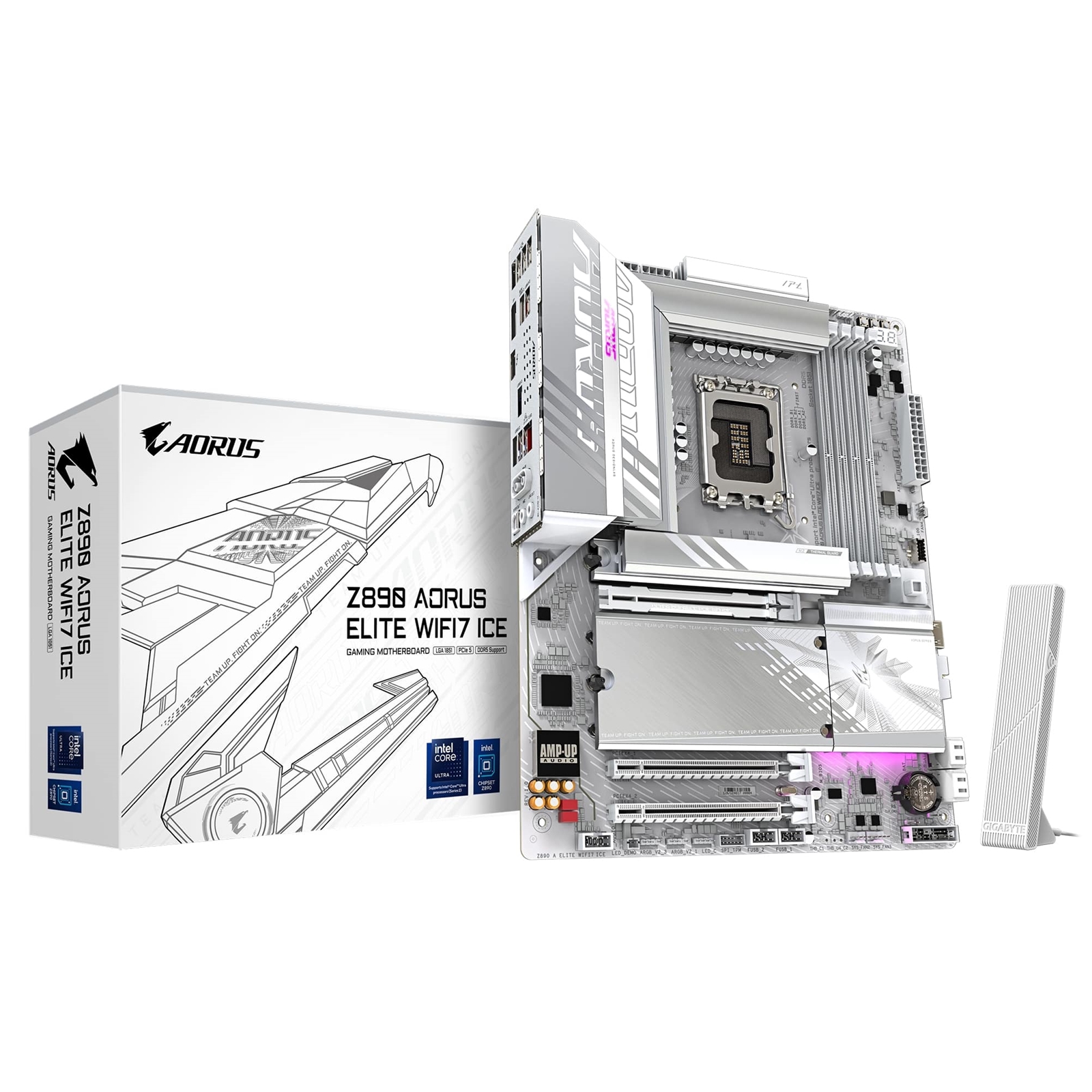

Gigabyte Z890 AORUS ELITE WIFI7 ICE Intel 1851 Socket Motherboard

Description

Z890 AORUS ELITE WIFI7 ICE

Key Features

Supports Intel Core Ultra processors (Series 2)

Digital twin 16+1+2 phases VRM solution

D5 Bionic Corsa for Infinite Memory Performance

AI Perfdrive: Provides optimal and customized BIOS preset profile for users

Premium Compatibility: 4 x DDR5 with XMP Memory Module Support

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click: M.2 heatsinks with screwless design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

New Power Monitor in HWinfo for real-time monitoring on CPU power phases

Ultra-Fast Storage: 4 x M.2 slots, including 1 x PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity: THUNDERBOLT 4 Type-C with DP-Alt, DisplayPort

High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors

Ultra Durable PCIe Armor: The metal back plate of PCIe x16 slot for enhanced durability

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Infinite Memory Performance

AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Steady Power

Better Play AORUS Series, steady power keeps your gaming smooth.

Comprehensive Thermal

AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Born from Ultra Durable

Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Specifications

CPU

LGA1851 socket: Support for Intel Core Ultra Processors

L3 cache varies with CPU

Chipset

Intel Z890 Express Chipset

Memory

Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Support CUDIMM memory module

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs

When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output).

When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output).

1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

Audio

Realtek ALC1220 CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.4

Support for 11be 160MHz wireless standard

Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.4

Support for 11be 160MHz wireless standard

Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

CPU:

1 x Intel Thunderbolt 4 (USB Type-C) ports on the back panel

Chipset:

1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x power button

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x Intel Thunderbolt 4 connectors (USB Type-C ports)

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

2 x antenna connectors (2T2R)

1 x DisplayPort (Note)

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Product Codes:

Manufacter Part Number: Z890 AORUS ELITE WIFI7 ICE

EAN: 4719331865221
