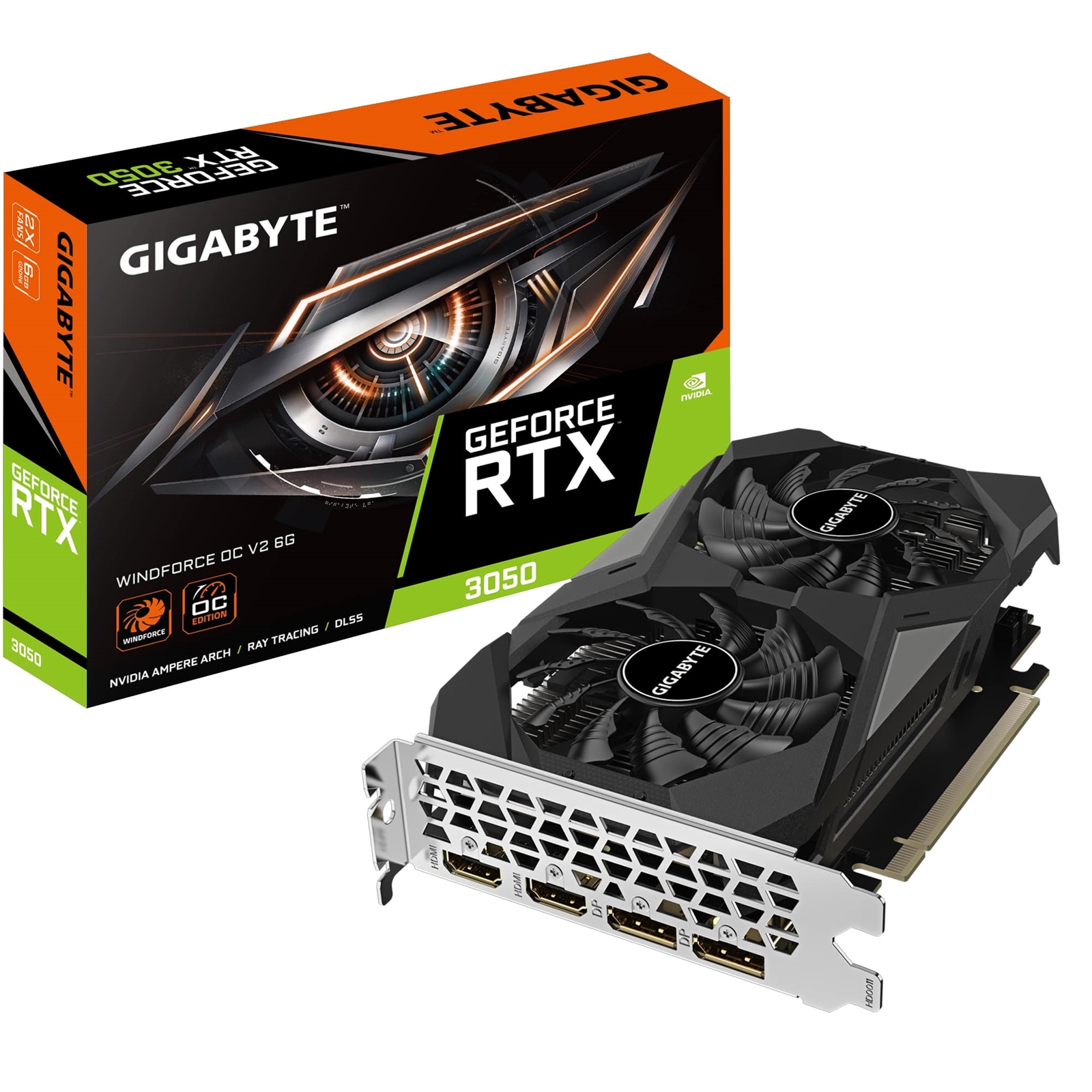

Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6G Graphics Card

Description

GeForce RTX 3050 WINDFORCE OC V2 6G

KEY FEATURE

NVIDIA Ampere Streaming Multiprocessors

2nd Generation RT Cores

3rd Generation Tensor Cores

Powered by GeForce RTX 3050

Integrated with 6GB GDDR6 96-bit memory interface

WINDFORCE cooling system

CORE CLOCK

1477 MHz (Reference Card: 1470 MHz)

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE, ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specification

Graphics Processing

GeForce RTX 3050

Core Clock

1477 MHz (Reference Card: 1470 MHz)

CUDA Cores

2304

Memory Clock

14000 MHz

Memory Size

6 GB

Memory Type

GDDR6

Memory Bus

96 bit

Card Bus

PCI-E 4.0

Digital Max Resolution

7680×4320

Multi-View

4

Card Size

L=191 W=111 H=36 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

300W

Power Connectors

N/A

Output

DP1.4a x 2

HDMI 2.1 x 2

Accessories

Quick guide

Product Codes:

Manufacter Part Number: GV-N3050WF2OCV2-6GD

EAN: 719331355081
