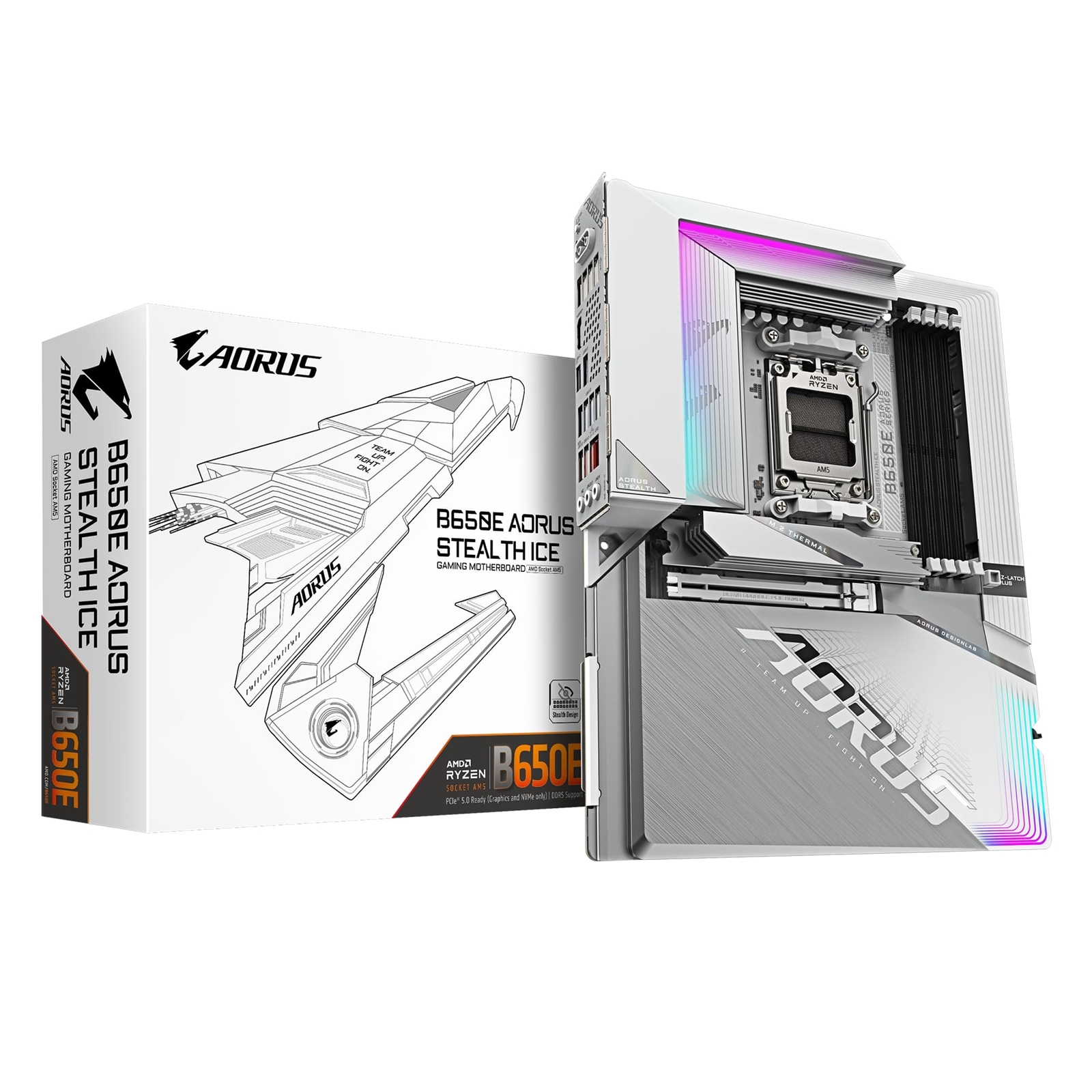

Gigabyte B650E AORUS STEALTH ICE AMD AM5 Socket Motherboard

Description

B650E AORUS STEALTH ICE

Key Features

AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors

Digital twin 12+2+2 phases VRM solution

Dual Channel DDR5: 4 x DIMMs with AMD EXPO Memory Module Support

PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks

EZ-Latch Click: M.2 heatsinks with screwless design

EZ-Latch Plus: M.2 slots with Quick Release & Screwless Design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

UC BIOS: User-Centred intuitive UX with Quick Access function

Back Plate: With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality

Ultra-Fast Storage: 3 x M.2 slots, including 1 x PCIe 5.0 x4

Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL

Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna

Extended Connectivity: HDMI, Onboard HDMI, USB-C with DP-Alt

Reliable Audio: 8-Ch HD Audio & Audiophile Grade Capacitors

World’s First true White Reverse Connector Motherboard

What is STEALTH Design?

Not just a PC build kit, Stealth Series Product delivers a revolutionary building experience. By having virtually no wire and cable cluttering, a faster assembly time, smoother directional airflow, and better performance, flaunt a cableless seeming desktop with unrestricted space.

Maximized Chassis Compatibility

The Stealth series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints.

Power In Number

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Connectivity Versatile

Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

Seamless Connectivity

Wi-Fi 7

Ultra-high Gain Antenna

2.5GbE LAN

Overall Thermal

Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

VRM Thermal Armor Advanced

These solid heatsinks are forged to keep your system cool.

M.2 Thermal Guard XL

with M.2 Thermal Guard Backplate

Build Effortless

Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

M.2 EZ-Match

A brand-new exclusive patented design uses magnetic attraction to allow users and gamers to easily align and quickly detach large heat sinks, without the need for additional tools or screws.

WIFI EZ-Plug

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, relieving users from the troublesome screwing required during installation.

Memory, To The Future

All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.

DDR5 Overclocking Up To

8000 MT/s

BIOS Engineering

Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.

DDR5 Auto Booster

one click to boost native DDR5-4800 to 5000

AMD EXPO / Intel XMP 3.0 User Profile

optimizes memory settings and achieve the best performance for the system

Shielded Memory Routing

Memory routing is shielded within the PCB’s inner layer to protect against interference.

Daisy-Chained Routing

Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.

Get everythingUD

GIGABYTE Ultra Durable Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.

Elevating Performance Together

AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we’re making next-gen performance more user-friendly.

Specification

CPU

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors

AMD Ryzen 8000 Series Processors

AMD Ryzen 7000 Series Processors

Chipset

AMD B650

Memory

Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs

and a maximum resolution of 3840×2160@144 Hz

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

MediaTek Wi-Fi 7 MT7925

802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.4

Support for 11be 160MHz wireless standard

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series- Phoenix 1/ Phoenix 2 Processors support PCIe 4.0×4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 (Note1)

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel

Chipset:

1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header

3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

4 x USB 3.2 Gen 1 ports on the back panel

nternal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note2)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x HDMI port

1 x USB Type-C port (DisplayPort)

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection Fan fail warning

Fan speed control

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Product Codes:

Manufacter Part Number: B650E AORUS STEALTH ICE

EAN: 4719331863777
