Gigabyte B550M GAMING X WIFI6 AMD AM4 Socket Motherboard

Description

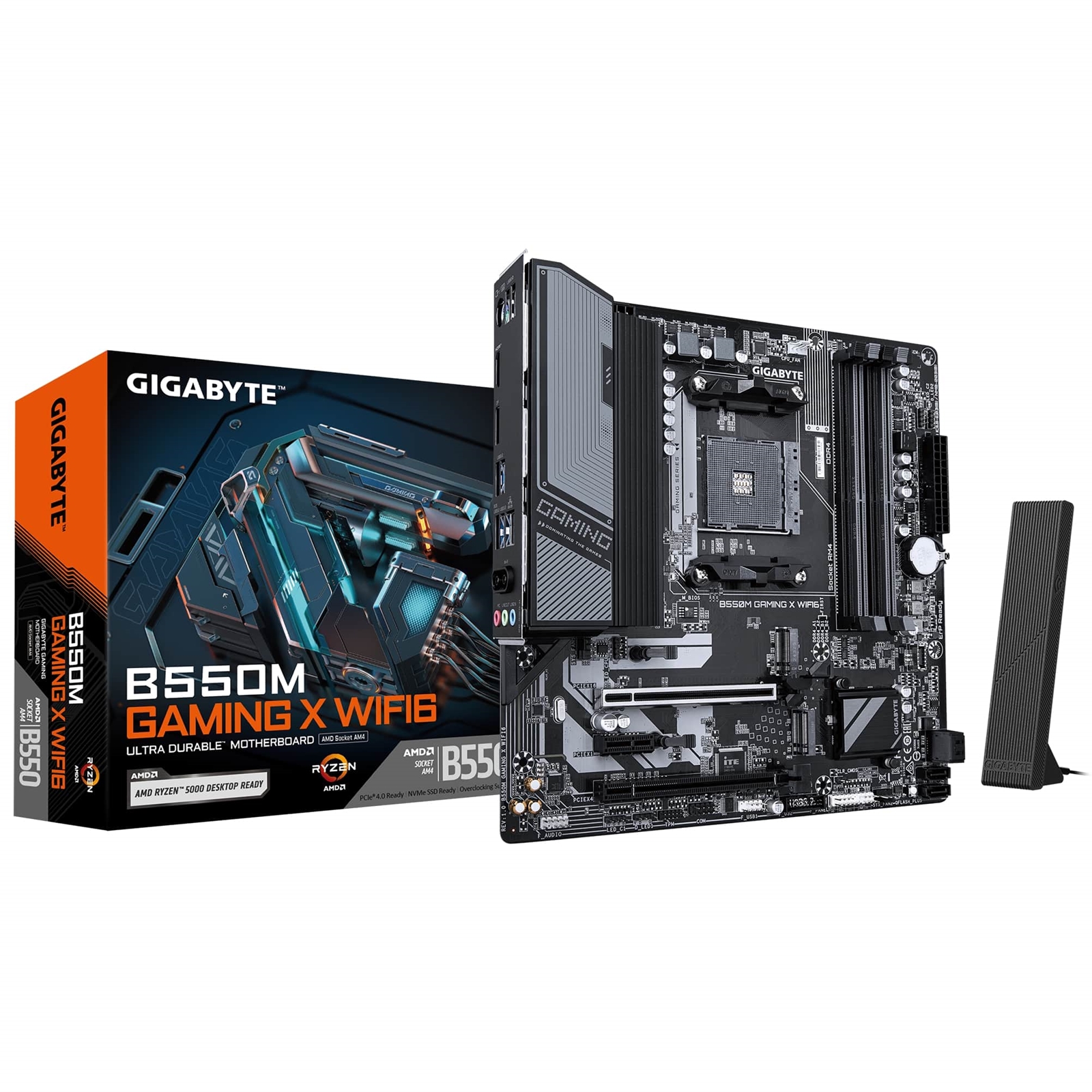

B550M GAMING X WIFI6

Key Features

AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors

Digital twin 5+3 phases VRM solution

Dual Channel DDR: 4 x DIMMs

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch: PCIe slots with Quick Release Design

Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1

Efficient Thermal: VRM Thermal Armor Advanced

Fast Networking: GbE LAN & Wi-Fi 6

Extended Connectivity: HDMI, DisplayPort

PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

SPECIFICATION

CPU

AMD Socket AM4, support for:

AMD Ryzen 5000 G-Series Processors

AMD Ryzen 5000 Series Processors

AMD Ryzen 4000 G-Series Processors

AMD Ryzen 3000 G-Series Processors

AMD Ryzen 3000 Series Processors

(Go to GIGABYTE’s website for the latest CPU support list.)

Chipset

AMD B550

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory

Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon Graphics support:

1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz

Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Maximum shared memory of 16 GB

Audio

Realtek ALC1220 CODEC

The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Wireless Communication module

Realtek Wi-Fi 6 RTL8851BE

WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 80MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4

1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs

AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x HDMI port (Note)

1 x DisplayPort (Note)

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

2 x antenna connectors

3 x audio jacks

(Note) Actual support may vary by CPU.

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

EasyTune

RGB Fusion

Smart Backup

System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Product Codes:

Manufacter Part Number: B550M GAMING X WIFI6

EAN: 4719331870096
