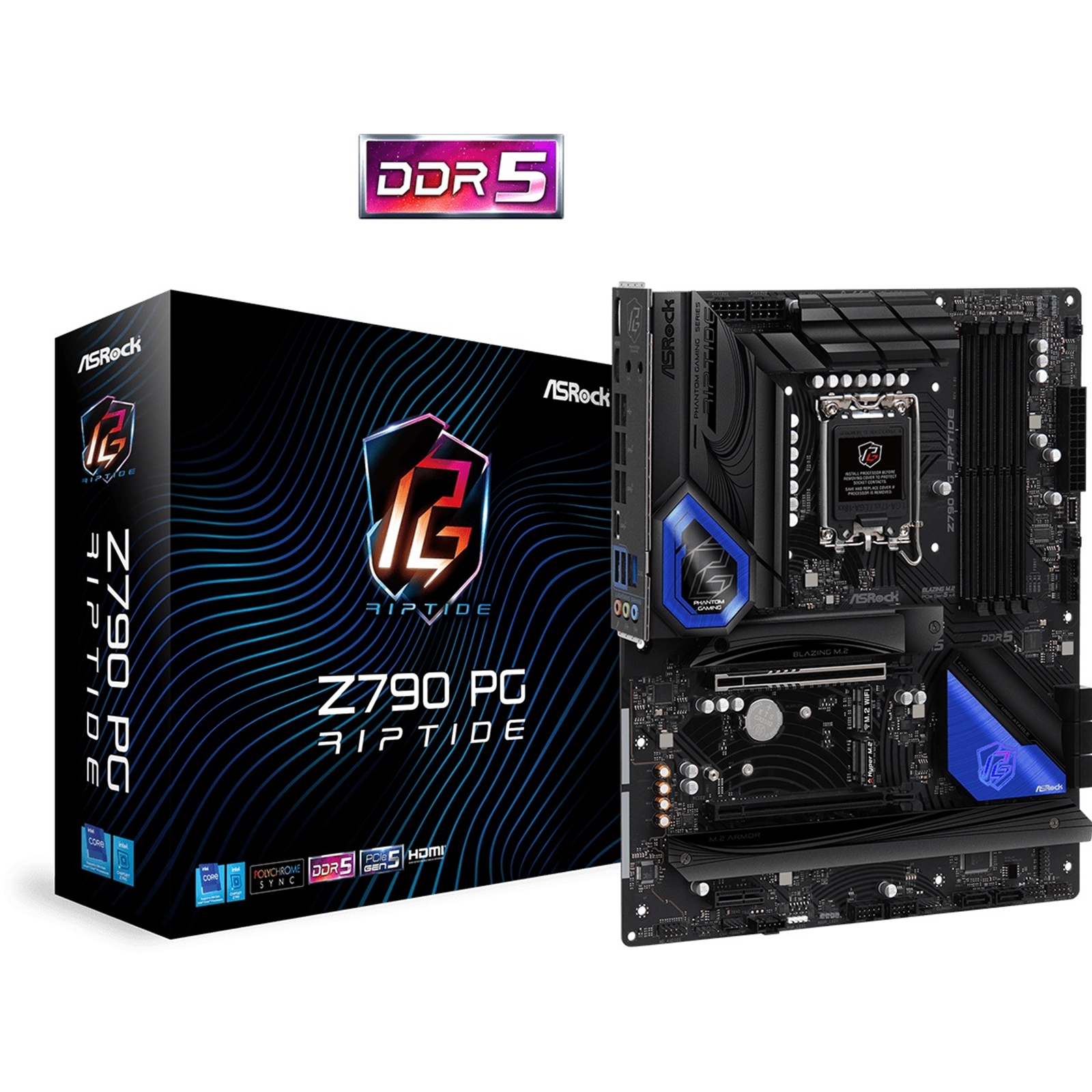

ASRock Z790 PG Riptide Intel 1700 Socket Motherboard

Description

Unique Feature

Superb Productivity

PCIe Gen5 (Graphics, M.2)

Dual Channel DDR5

Rock-Solid Durability

14+1+1 Power Phase, 50A Dr.MOS for VCore+GT

Flexible Integrated I/O Shield

Ultrafast Connectivity

Killer 2.5G LAN

ASRock Lightning Gaming Ports

EZ Update

ASRock Auto Driver Installer

EZ Troubleshooter

ASRock Post Status Checker

CPU

Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)

Chipset

Intel Z790

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)

Max. capacity of system memory: 128GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics

Intel Xe Graphics Architecture (Gen 12)

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Killer E3100G

Supports Killer LAN Software

Slots

CPU:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode

1 x PCIe 3.0 x1 Slot (PCIE3)

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

CPU:

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

1 x Blazing M.2 Socket (M2_5, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

8 x SATA3 6.0 Gb/s Connectors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

1 x USB 3.2 Gen2x2 Type-C (Front)

2 x USB 3.2 Gen2 Type-A (Rear)

1 x USB 3.2 Gen1 Type-C (Rear)

6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)

6 x USB 2.0 (2 Rear, 4 Front)

Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header

3 x Addressable LED Headers

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Rear Panel I/O

2 x Antenna Mounting Points

1 x HDMI Port

1 x DisplayPort 1.4

2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

1 x USB 3.2 Gen1 Type-C Port

4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.)

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock Motherboard Utility (Phantom Gaming Tuning)

Killer Control Center

ASRock Polychrome SYNC

UEFI

ASRock EZ Mode

ASRock Full HD UEFI

ASRock My Favorites in UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

ASRock Easy RAID Installer

Accessories

1 x User Manual

2 x SATA Data Cables

5 x Screws for M.2 Sockets

Form Factor

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

2oz Copper PCB

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Product Codes:

Manufacter Part Number: Z790 PG RIPTIDE

EAN: 4710483940873
