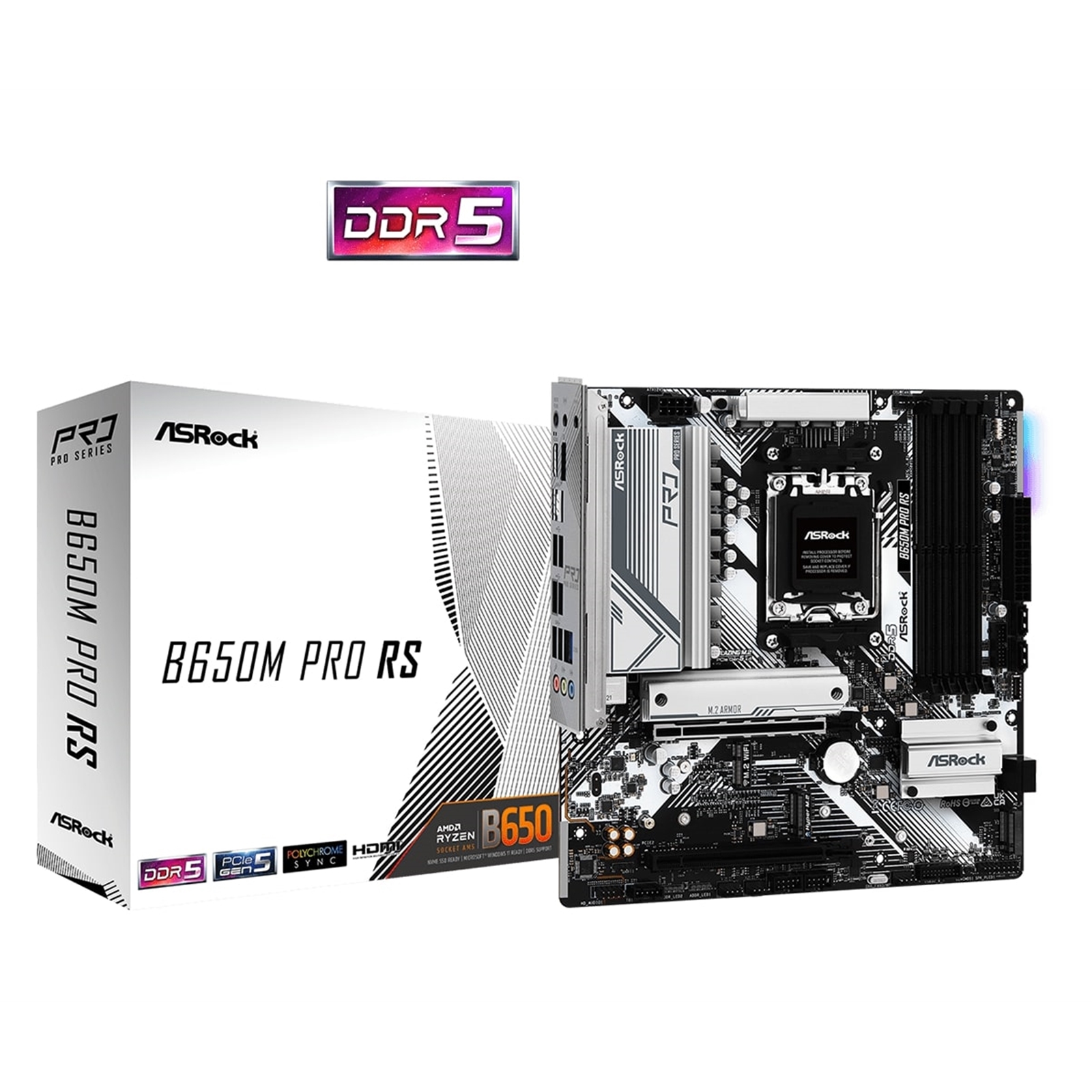

ASRock B650M Pro RS AMD AM5 Socket Motherboard

Description

B650M Pro RS

Key Features

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

8+2+1 Power Phase, Dr.MOS

4 x DDR5 DIMMs

Supports Dual Channel, up to 7200+ (OC)

1 x PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi

Graphics Output Options: HDMI, DisplayPort

Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio

4 x SATA3, 1 Blazing M.2 (PCIe Gen5 x4)

1 x Hyper M.2 (PCIe Gen4 x4)

1 x M.2 (PCIe Gen4 x2)

1 x USB 3.2 Gen2 Type A+C (Rear)

1 x USB 3.2 Gen1 Type-C (Front)

6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)

Dragon 2.5G LAN

Extreme Overclocking Performance

DDR5 EXPO & XMP Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7200MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO/ Intel XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Blazing OC Tuner

The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.

AMD PBO Technology

PBO(Precision Boost Overdrive) is an automatic performance-maximizing technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyze conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.

Intelligent Cooling Design

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Fan-Tastic Tuning

ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.

PWM/DC Fan Support

ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Optimized VRM Design

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

8+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Optimized VRM Design

6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

2oz Copper PCB

2 ounce copper inner-800 layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Nahimic Audio

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

Static Noise Suppression

Echo Cancellation

Lateral Sound Cancellation

Voice Stabilizer

Ultimate Gaming Experience

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

Works on any devices!

Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

High Speed M.2 Solution

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Multi-Layer M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

EZ Setting

Auto Driver Installer

Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!

Step1: Install Auto Driver Installer

Step2: ADI will automatically download and install all necessary drivers.

Step3: Done!

BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

Pre-Installed IO Shield

ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

Specification

Unique Feature

Superb Productivity

PCIe Gen5 (M.2)

Dual Channel DDR5

Rock-Solid Durability

8+2+1 Power Phase, 50A Dr.MOS

Pre-Installed I/O Shield

Ultrafast Connectivity

2.5G LAN

EZ Update

BIOS Flashback Button

ASRock Auto Driver Installer

EZ Troubleshooter

CPU

Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset

AMD B650

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA graphics (Actual support may vary by CPU)

1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Slots

CPU:

1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*

Chipset:

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Supports AMD CrossFire

15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode

4 x SATA3 6.0 Gb/s Connectors

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

1 x USB 3.2 Gen2 Type-C (Rear)

1 x USB 3.2 Gen2 Type-A (Rear)

1 x USB 3.2 Gen1 Type-C (Front)

6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)

8 x USB 2.0 (4 Rear, 4 Front)

Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header

3 x Addressable LED Headers

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O

2 x Antenna Mounting Points

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

2 x USB 3.2 Gen1 Ports

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock Motherboard Utility (A-Tuning)

ASRock Dragon 2.5G LAN Software

ASRock Polychrome SYNC

UEFI

ASRock Full HD UEFI

ASRock Auto Driver Installer

ASRock Instant Flash

Accessories

1 x User Manual

2 x SATA Data Cables

4 x Screws for M.2 Sockets

1 x Standoff for M.2 Socket

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

2oz Copper PCB

OS

Microsoft Windows 10 64-bit / 11 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Product Codes:

Manufacter Part Number: B650M PRO RS

EAN: 4710483943096
